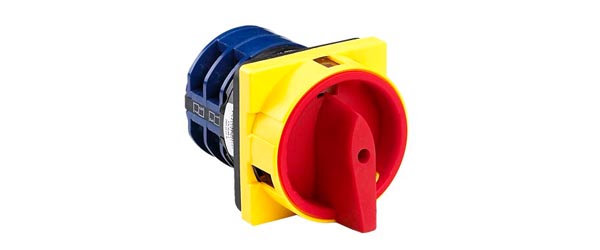

◆Introduction LW26GS series Pad-lock type switches are derivatives of LW26 series rotary switches.Installed in equipment where it requires a pad-lock to lock the switch in certain position.For instance,to fix the switch in ON position,to prevent the unauthorized personnel from operating the swith.
LW26GS series Pad-lock type switch complies with the GB 14048.3 and IEC 60947.3.
◆Technical parameters
|
Description |
LW26GS-20 |
LW26GS-25 |
LW26GS-32 |
LW26GS-63 |
LW26GS-125 |
LW26GS-160 |
|
|
V |
440 |
440 |
440 |
440 |
440 |
440 |
Rated thermal current Ith |
A |
20 |
25 |
32 |
63 |
125 |
160 |
|
Rated working current Ie |
|
|
|
|
|
|
|
|
AC-21A |
A |
20 |
25 |
32 |
63 |
100 |
150 |
|
AC-22A |
A |
20 |
25 |
32 |
63 |
100 |
150 |
|
AC-23A |
A |
15 |
22 |
30 |
57 |
90 |
135 |
|
power |
P |
|
|
|
|
|
|
|
AC-23A |
KW |
7.5 |
11 |
15 |
30 |
45 |
75 |
|
|
|
|
|
|
|
|
|
|
8500 |
8500 |
8500 |
8500 |
8500 |
8500 |
|
|
1500 |
1500 |
1500 |
1500 |
1500 |
1500 |
|
|
10000 |
10000 |
10000 |
10000 |
10000 |
10000 |

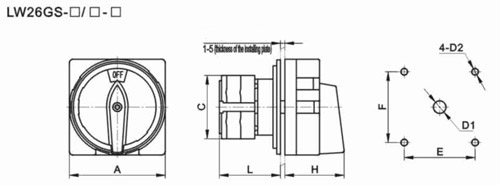

◆Dimension and installation
|
Description |
Escutcheon plate |
Dimensions(mm)
|
Installation(mm)
|
| A |
C |
L |
H |
E |
F |
D1 |
D2 |
|
LW26GS-20/04-1 |
M1 |
□48 |
43 |
42 |
33 |
36 |
36 |
Φ8.5 |
Φ4.5 |
|
LW26GS-20/04-2 |
M2 |
□64 |
43 |
43 |
42 |
48 |
48 |
Φ8.5 |
Φ4.5 |
|
LW26GS-25/04-1 |
M1 |
□48 |
45.2 |
50 |
33 |
36 |
36 |
Φ8.5 |
Φ4.5 |
|
LW26GS-25/04-2 |
M2 |
□64 |
45.2 |
51 |
42 |
48 |
48 |
Φ8.5 |
Φ4.5 |
|
LW26GS-32/04-2 |
M2 |
□64 |
58 |
55 |
42 |
48 |
48 |
Φ10 |
Φ4.5 |
|
LW26GS-32/04-3 |
M3 |
□88 |
58 |
55 |
52 |
68 |
68 |
Φ13 |
Φ6 |
|
LW26GS-63/04-2 |
M2 |
□64 |
66 |
72.5 |
42 |
48 |
48 |
Φ10 |
Φ4.5 |
|
LW26GS-63/04-3 |
M3 |
□88 |
58 |
55 |
52 |
68 |
68 |
Φ13 |
Φ6 |
|
LW26GS-125/04-3 |
M3 |
□88 |
84 |
88 |
52 |
68 |
68 |
Φ13 |
Φ6 |
|
LW26GS-160/04-3 |
M3 |
□88 |
88 |
100 |
52 |
68 |
68 |
Φ13 |
Φ6 |
