◆Introduction LW26S Key-lock type switchesare derivatives of LW26 rotary switches.Installed in equipments,which requires a key to lock the switch. It prevents the unauthorized presonnel from mis-operation.
LW26S Key-lock type switches comply with the GB 14048.3 and IEC 60947-3.
◆Technical parameter
|
Description |
LW26S-10 |
LW26S-20 |
LW26S-25 |
LW26S-32 |
LW26S-63 |
|
Rated working voltage Ue |
V |
440 |
440 |
440 |
440 |
440 |
Rated thermal current Ith |
A |
10 |
20 |
25 |
32 |
63 |
|
Rated working current Ie |
|
|
|
|
|
|
| AC-21A |
A |
10 |
20 |
25 |
32 |
63 |
| AC-22A |
A |
10 |
20 |
25 |
32 |
63 |
| AC-23A |
A |
7 |
15 |
22 |
30 |
57 |
|
power |
P |
|
|
|
|
|
|
AC-23A |
KW |
3 |
7.5 |
11 |
15 |
30 |

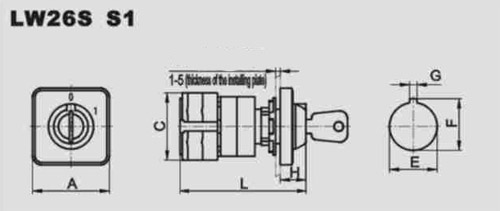

◆Dimensions and installation
|
Description |
Dimensions(mm) |
Installation(mm) |
| A |
C |
H |
L |
E |
F |
G |
|
LW26S-10 |
□30 |
28 |
8.5 |
71.5 |
Φ16.2 |
18 |
1.9 |
|
LW26S-20 |
□48 |
43 |
15.6 |
76.5 |
Φ22.3 |
24.1 |
3.2 |
|
LW26S-20 |
□64 |
43 |
15.6 |
76.5 |
Φ22.3 |
24.1 |
3.2 |
|
LW26S-20 |
□64 |
43 |
15.6 |
76.5 |
Φ30.5 |
33 |
4.8 |
|
LW26S-25 |
□48 |
45.2 |
15.6 |
83 |
Φ22.3 |
24.1 |
3.2 |
|
LW26S-25 |
□64 |
45.2 |
15.6 |
83 |
Φ22.3 |
24.1 |
3.2 |
|
LW26S-25 |
□64 |
45.2 |
15.6 |
83 |
Φ30.5 |
33 |
4.8 |
|
LW26S-32F |
□48 |
48 |
15.6 |
86.5 |
Φ22.3 |
24.1 |
3.2 |
|
LW26S-32F |
□64 |
48 |
15.6 |
86.5 |
Φ22.3 |
24.1 |
3.2 |
|
LW26S-32F |
□64 |
48 |
15.6 |
86.5 |
Φ30.5 |
33 |
4.8 |
|
Description |
Dimensions(mm) |
Installation(mm) |
| A |
C |
H |
L |
E |
F |
G |
|
LW26S-10 |
φ29 |
28 |
8.5 |
71.5 |
Φ16.2 |
18 |
1.9 |
|
LW26S-20 |
φ39 |
43 |
15.6 |
76.5 |
Φ22.3 |
24.1 |
3.2 |
|
LW26S-20 |
φ39 |
43 |
15.6 |
76.5 |
Φ22.3 |
24.1 |
3.2 |
|
LW26S-20 |
φ39 |
43 |
15.6 |
76.5 |
Φ30.5 |
33 |
4.8 |
|
LW26S-25 |
φ39 |
45.2 |
15.6 |
83 |
Φ22.3 |
24.1 |
3.2 |
|
LW26S-25 |
φ39 |
45.2 |
15.6 |
83 |
Φ22.3 |
24.1 |
3.2 |
|
LW26S-25 |
φ39 |
45.2 |
15.6 |
83 |
Φ30.5 |
33 |
4.8 |
|
LW26S-32F |
φ39 |
45.2 |
15.6 |
86.5 |
Φ22.3 |
24.1 |
3.2 |
|
LW26S-32F |
φ39 |
45.2 |
15.6 |
86.5 |
Φ22.3 |
24.1 |
3.2 |
|
LW26S-32F |
φ39 |
45.2 |
15.6 |
86.5 |
Φ30.5 |
33 |
4.8 |
|

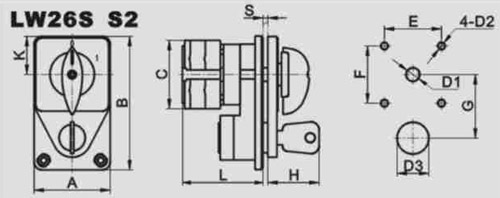

Description |
Dimensions(mm) |
Installation(mm)
|
| A |
B |
K |
C |
L |
H |
S |
E |
F |
G |
D1 |
D2 |
D3 |
|
LW26S-20 |
48 |
84 |
24 |
43 |
51.5 |
32.5 |
1~4 |
36 |
36 |
40 |
Φ8.5 |
Φ4.5 |
Φ20 |
|
LW26S-25 |
48 |
84 |
24 |
45.2 |
58 |
32.5 |
1~4 |
36 |
36 |
40 |
Φ8.5 |
Φ4.5 |
Φ20 |
|
LW26S-32 |
64 |
112 |
32 |
58 |
72 |
34 |
1～6 |
48 |
48 |
48 |
Φ10 |
Φ4.5 |
Φ34 |
|
LW26S-32F |
48 |
84 |
24 |
48 |
61.5 |
32.5 |
1～4 |
36 |
36 |
40 |
Φ8.5 |
Φ4.5 |
Φ20 |
|
LW26S-63 |
64 |
112 |
32 |
66 |
79 |
34 |
1～6 |
48 |
48 |
48 |
Φ10 |
Φ4.5 |
Φ34 |
|

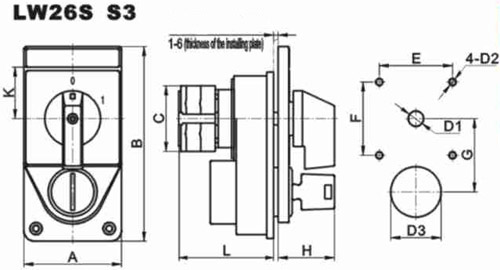

Description |
Dimensions(mm)
|
Installation(mm)
|
| A |
B |
K |
C |
L |
H |
E |
F |
G |
D1 |
D2 |
D3 |
|
LW26S-20 |
64 |
126.5 |
32 |
43 |
51.5 |
34 |
48 |
48 |
48 |
Φ10 |
Φ4.5 |
Φ34 |
|
LW26S-25 |
64 |
126.5 |
32 |
45.2 |
58 |
34 |
48 |
48 |
48 |
Φ10 |
Φ4.5 |
Φ34 |
|
LW26S-32 |
64 |
126.5 |
32 |
58 |
72 |
34 |
48 |
48 |
48 |
Φ10 |
Φ4.5 |
Φ34 |
|
LW26S-32F |
64 |
126.5 |
32 |
48 |
61.5 |
34 |
48 |
48 |
48 |
Φ10 |
Φ4.5 |
Φ34 |
|
LW26S-63 |
64 |
126.5 |
32 |
66 |
79 |
34 |
48 |
48 |
48 |
Φ10 |
Φ4.5 |
Φ34 |
