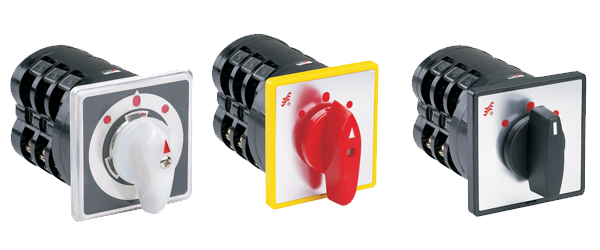

◆Introduction LW5D applied to change over of circuits,also for control of electrical measuring instruments and control of motors.
◆Technical parameters
Uses |
|
Master Control |
Diredt control motor |
Rated thermal current |
ITH |
A |
16 |
Rated working voltage |
Ue |
V |
125 |
220 |
250 |
380 |
440 |
500 |
380 |
Rated working current |
Le |
|
|
|
|
|
|
|
|
AC-15 |
|
A |
|
4.6 |
|
2.6 |
|
2.0 |
|
DC-3 |
|
A |
|
|
|
|
|
|
12 |
AC-4 |
|
A |
|
|
|
|
|
|
3.5 |
DC-13Double breakpoint |
|
A |
0.55 |
|
0.27 |
|
|
0.14 |
|
DC-13four breakpoint |
|
A |
0.82 |
|
0.41 |
|
|
0.20 |
|
Mechanical life Mechanical life without load:0.3×10
6times,operation frequency is 300 times/h.。
Mechanical life with load:AC-15 DC-13为0.01×10
4times operation frequency is 300 times/h.
AC-3为0.1×10
4times operation frequency is 120 times/h.
AC-4为0.1×10
4times operation frequency is 120 times/h.

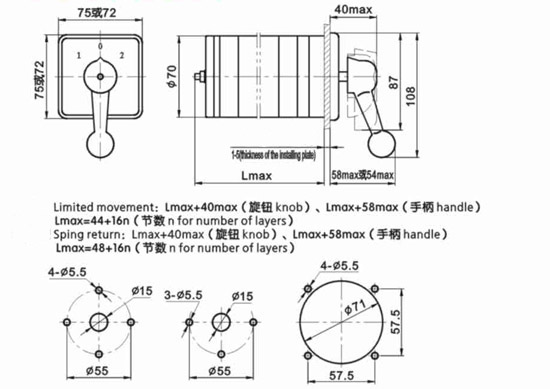

◆Dimensions and installation
