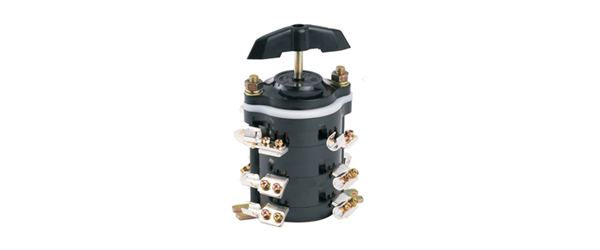

◆Introduction HZ 10D-□/E119Welding machine switch applied to welding machine for adjusting current of 100A and below,AC50Hz or 60Hz,rated voltage 380V and below,for the change of main circuit,auxiliary electrical appliances.
◆Technical parameters
|
Description |
HZ10D-25/E119 |
HZ10D-63/E119 |
HZ10D-100/E119 |
HZ10D-100/E119A |
|
Rated thermal current |
Ith |
A |
25 |
63 |
100 |
100 |
|
Rated working voltage |
Ue |
V |
240 440 |
240 440 |
240 440 |
240 440 |
|
Rated working current |
Ie |
A |
25 25 |
63 63 |
100 100 |
100 100 |

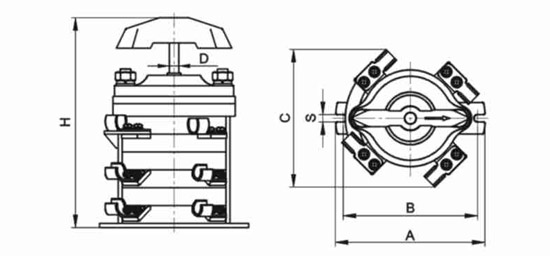

◆Dimensions and installation
|
Description |
Size |
| A |
B |
C |
D |
H |
S |
|
HZ10D-25/E119 |
100 |
90 |
90 |
Φ8 |
140 |
6 |
|
HZ10D-63/E119 |
142 |
128 |
128 |
Φ9 |
165 |
7 |
|
HZ10D-100/E119 |
142 |
128 |
128 |
Φ9 |
210 |
7 |
|
HZ10D-100/E119A |
142 |
128 |
128 |
Φ9 |
188 |
7 |
